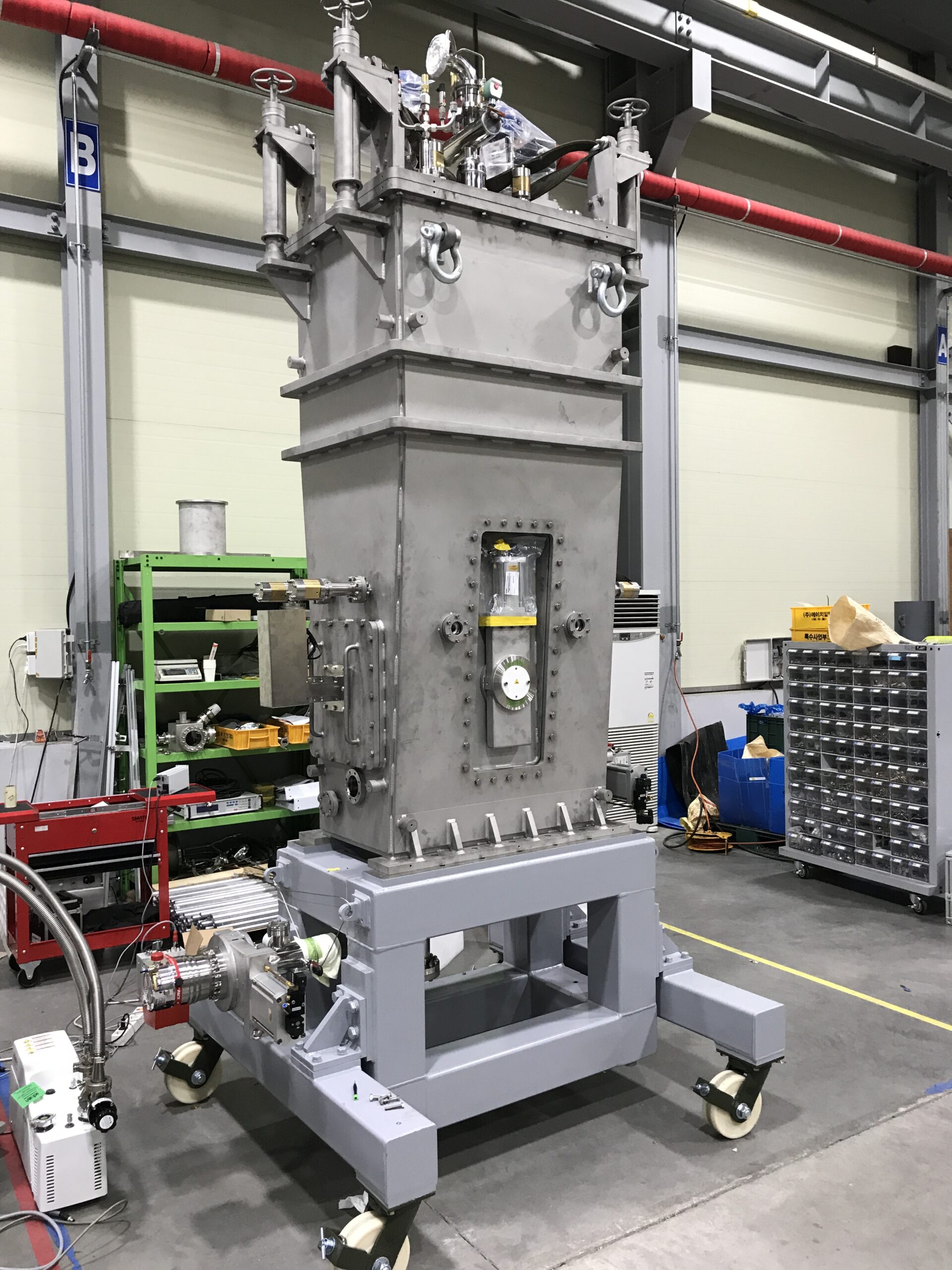

초전도 입자가속기용 HWR#1 Proto-type Cryomodule
Customer :
Institute for Basic Science
Technical Features :
with 1 cavity, magnetic shield, thermal shield.
- Requirement Vacuum :
Cavity : < 10-9 torr , Vessel : < 10-5 torr - Operating Temperature : 4.2 K
- Cryomodule width : 970 mm
- Length : 610 mm (valve to valve)
- Height : 2670 mm (exclude frame)
- Heat Loss Design : 3.4 W @ 4.2K
