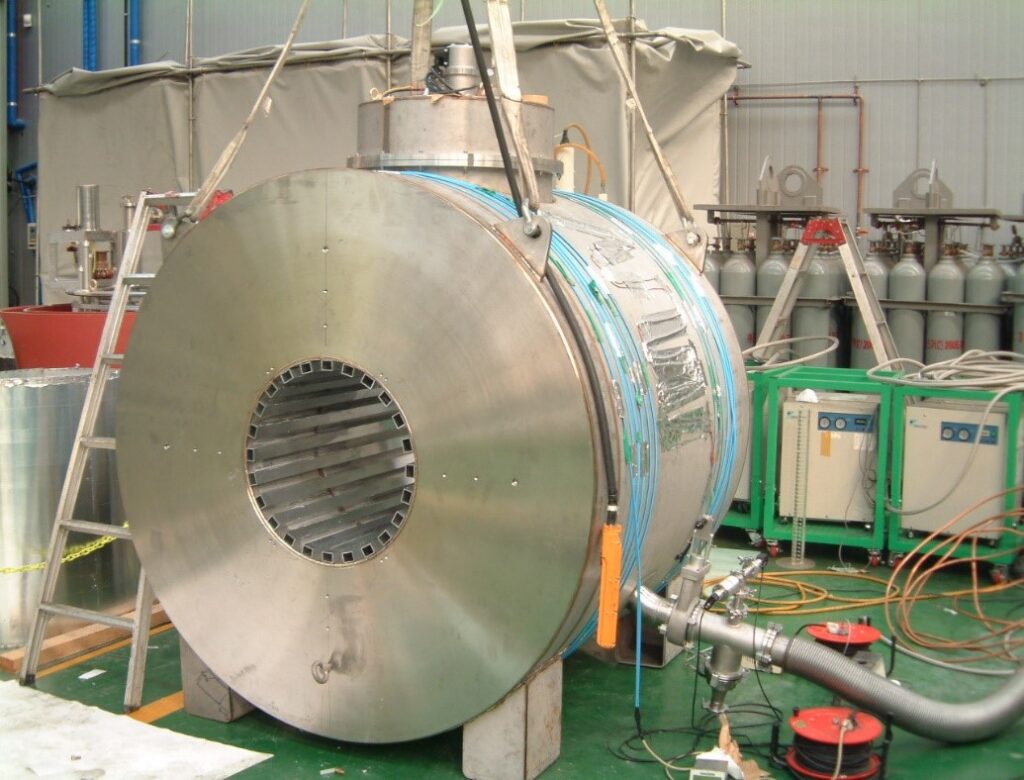

• Purpose : High Magnetic field (3T) MRI cryostat with refrigerator
• Technical Features :

     Refrigerator for Thermal shield : Leybold

           : RGD 5/100T 100W @ 77K, 7W @ 20K

     Refrigerator for recondensing : Sumitomo

           : SRDK 415 45W @ 50K, 1.5W @ 4.2K

   – Diameter of RT-bore   :  600 mm

   – Cryostat  Diameter  : 1708 mm

                      Length  : 1518 mm

   – LHe vessel   O.D.   : 1480 mm

                           I.D.   :   724 mm

                           Length   : 1278 mm

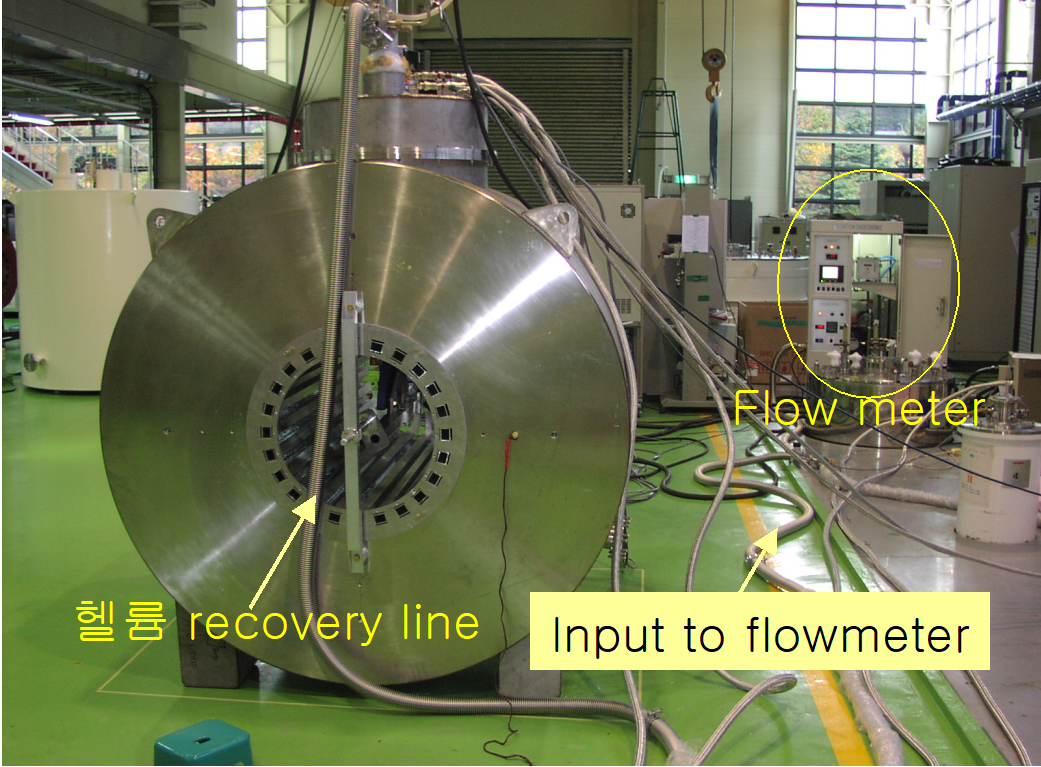

   – LHe boil off rate   :   0.0 ltr/h

• Delivery : 2002. 10. 7.
